Silicone Mold Replication for Rapid Prototyping and Small-Batch Manufacturing: Materials, Properties, and Considerations
In the field of rapid prototyping and small-batch manufacturing, silicone mold replication offers unique flexibility and is highly favored. Kaiao Prototyping understands that the right material choice is the cornerstone of product success. This article will take you through the common materials used in silicone mold replication and their characteristics, helping you make the best decision.
- Core Process and Capacity

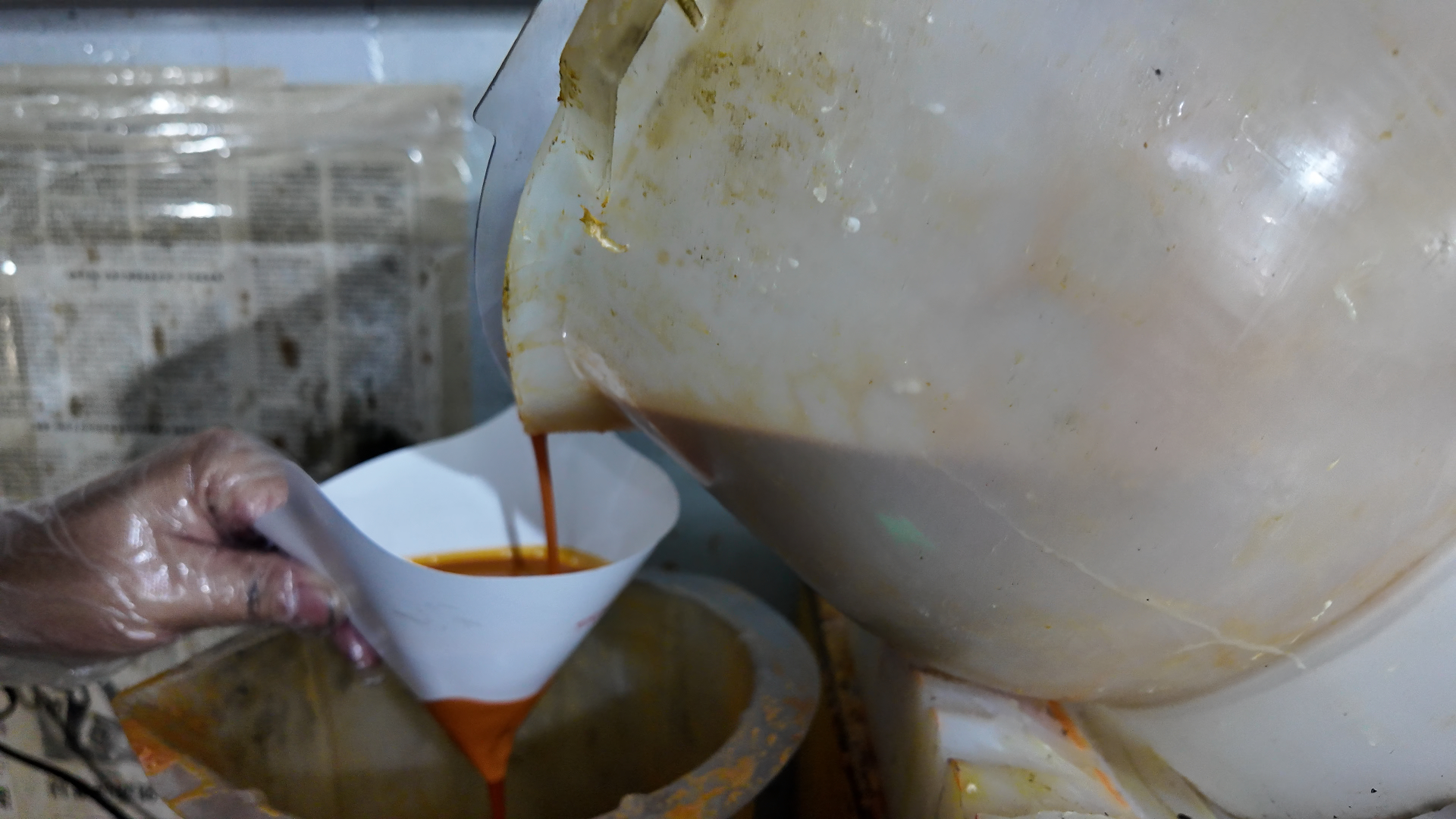

Silicone mold replication is an efficient process that uses a prototype to fabricate a silicone mold, then pours a two-component liquid material to cure, enabling rapid cloning of copies of the prototype. A single high-quality silicone mold can reliably produce about 10–20 pieces, making it a cost-effective option for small-batch trials, market validation, and functional testing.
- A Wide Range of Material Options
We offer a diversified set of polyurethane materials to simulate the physical properties of various engineering plastics:
- ABS-type: The most common, highly cost-effective choice, with good overall strength, toughness, and surface finish, suitable for most general structural parts.
- PC-type: Provides excellent impact resistance and high-temperature performance, suitable for high-toughness parts, whether transparent or opaque.
- PP-type: Good chemical resistance and flexibility; ideal for simulating clips, hinges, and similar components.
- POM-type: Low friction and high wear resistance; commonly used for gears, bearings, and other self-lubricating parts.
- Nylon-type: Can be reinforced with small amounts of glass fiber to further improve rigidity and heat resistance.
- Transparent materials: Capable of producing highly transparent parts, often used for optical demonstrations, lamp housings, or observation windows.
- Material Properties and Advantages
- One-piece molding, robust structure: Seamless part formation with high internal structural integrity, avoiding potential weaknesses from joints.
- Excellent mechanical strength: Replicas not only have accurate appearance but also withstand stringent drop tests; parts made from some high-performance materials can even be used as final products.
- Thermosetting materials: Unlike the thermoplastics commonly used in injection molding, mold-replica materials cure to exhibit good dimensional stability and heat resistance.
- Limitations Compared with Injection Mold Materials
To build trust, we also candidly outline the differences in characteristics:
- About glass fiber reinforcement: Compared with injection molding (which can include 30%+ glass fiber), the mold-replication process is limited by material flowability and can only incorporate small amounts of glass fiber. This is a difference dictated by the process characteristics.
- About material blending: Mold-replica materials are a single-system material. They cannot provide physical alloy materials like ABS+PC; you will need to select one material (ABS, PC, PP, etc.) based on your key performance requirements.
- About handling transparent parts: Transparent replica parts cannot be further polished to improve transparency through mechanical polishing; the final visual appearance is directly determined by the surface condition of the silicone mold cavity.
- Common Colors
Black, white, and beige are the natural colors of the materials and satisfy the visual needs of the vast majority of applications. If other specific colors are required, we can add color masterbatch to achieve the desired shade based on the color code you provide.
Kaiao Prototyping, leveraging professional material knowledge and process experience, is dedicated to providing the most faithful material simulation and reliable functional verification. Choose us to render your ideas with the highest precision during the small-batch phase.
